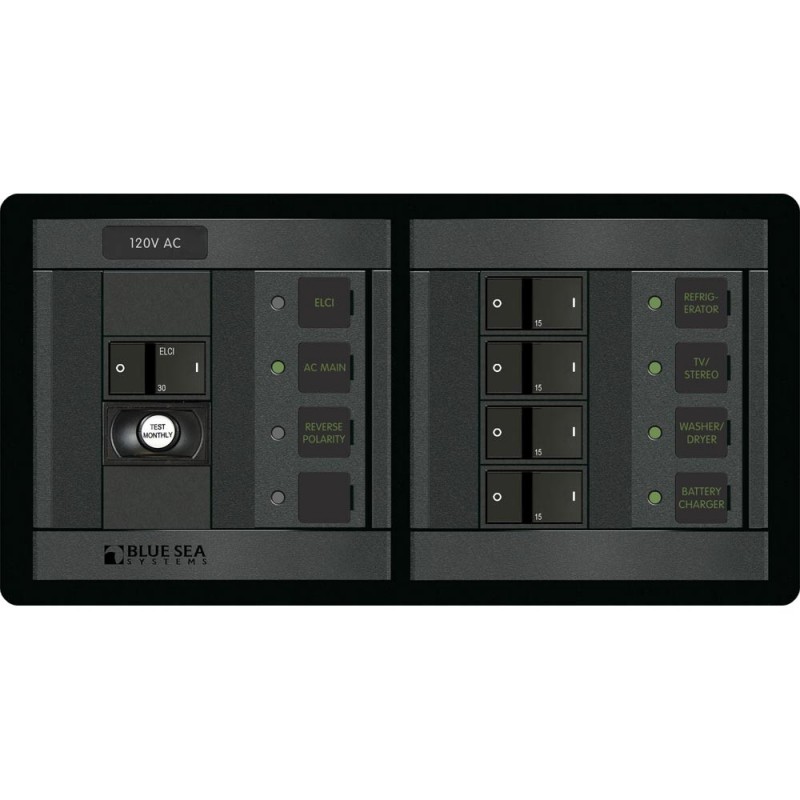

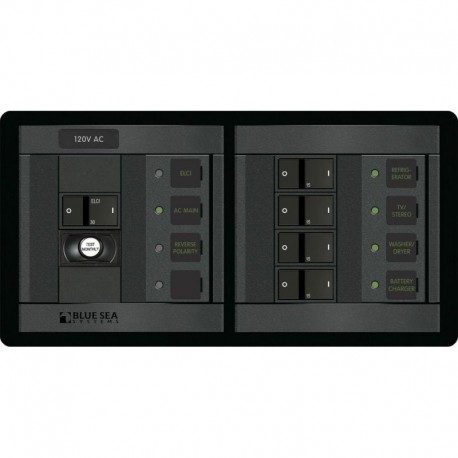

Blue Sea 1193 ELCI Main 30A Double Pole + 4 Positions Horizontal View larger

Blue Sea 1193 ELCI Main 30A Double Pole + 4 Positions Horizontal

Blue Sea Systems

57243

57243

New product

Blue Sea 1193 ELCI Main 30A Double Pole + 4 Positions Horizontal

More details

$563.69

Out of stock

More info

ELCI Main 30A Double Pole + 4 Positions Horizontal

Features:
  • One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
  • ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
  • Four 15A AC Branch Flat Rocker Circuit Breaker
  • Red " Reverse Polarity" LED
  • Includes 4206 AC Panel Basic Square Format Label Set
  • All circuit label positions are backlit
  • "ON" indicating LEDs


Specifications:
  • Positions: 1
  • Nominal Voltage: 120V AC
  • Height: 4.75" (120.65mm)
  • Width: 4.88" (123.95mm)
  • Depth: 3.99" (101.35mm)
  • Weight: 1.00lb (0.45kg)


Includes:
(4) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
