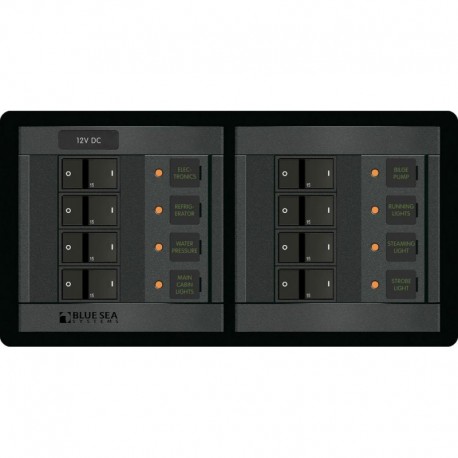

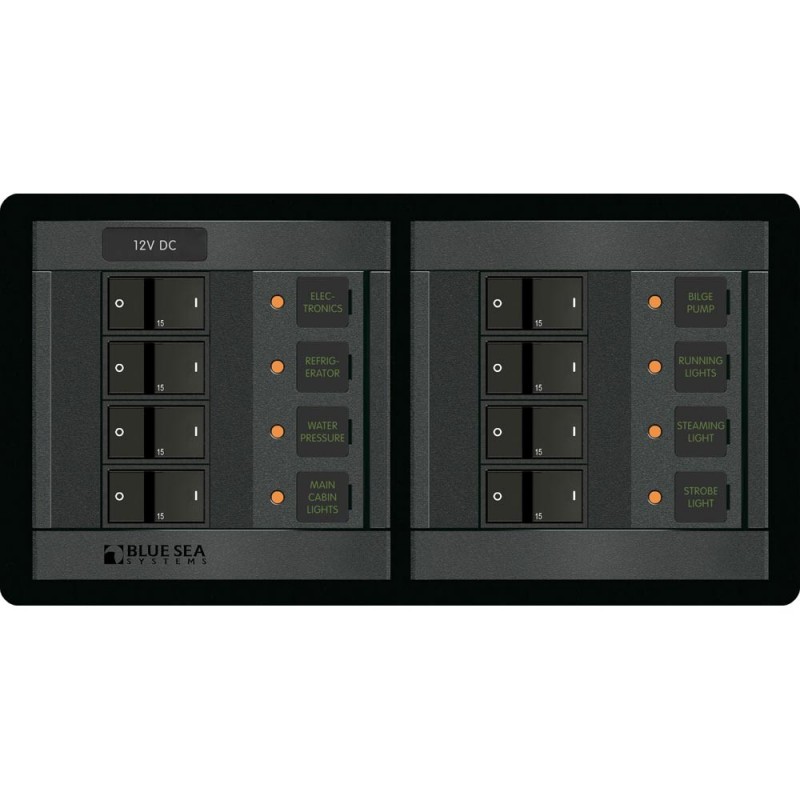

Blue Sea 1225 12V DC 8 Position - Horizontal
57223
57223
New product
Blue Sea 1225 12V DC 8 Position - Horizontal
More info
12 Volt DC 8 Position - Horizontal
Features:
Specifications:
* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(8) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
Features:
- 4 to 32 branch circuits with installed 15 Ampere circuit breakers
- Available with voltmeters, ammeters, and digital multimeters
- Includes 4205-Square Format Label Set
Specifications:
- Positions: 8
- Nominal Voltage: 12V DC
- Maximum Amperage*: 100A per bus
- Height: 4.75" (120.65mm)
- Width: 9.25" (234.95mm)
- Depth: 3.00" (76.2mm)
- Weight: 3.84lb (1.74kg)
* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(8) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
