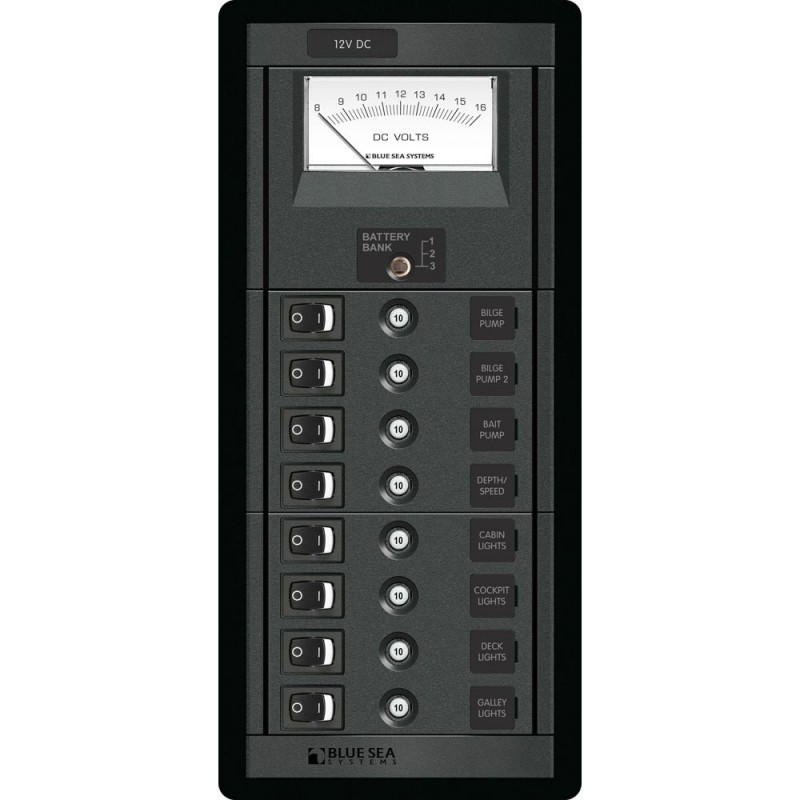

Blue Sea 1463 8 Position Switch CLB + Meter Vertical
57224
57224
New product
Blue Sea 1463 8 Position Switch CLB + Meter Vertical
More info
8 Position Switch CLB + Meter Vertical
Features:
Specifications:
* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(8) - 7054 - Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps
(8) - 7480 - Rocker Switch SPST - ON-OFF
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 8003 - DC Analog Voltmeter - 8 to 16V DC (Meter)
Features:
- Available with voltmeters and ammeters
- Panels with meters include a toggle switch to monitor voltage on up to three battery banks
- Includes 4205-Square Format Label Set
Specifications:
- Positions: 8
- Nominal Voltage: 12V DC
- Maximum Amperage*: 80A per bus
- Height: 10.75" (273.05mm)
- Width: 4.88" (123.95mm)
- Depth: 3.50" (88.9mm)
- Weight: 3.66lb (1.66kg)
* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(8) - 7054 - Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps
(8) - 7480 - Rocker Switch SPST - ON-OFF
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 8003 - DC Analog Voltmeter - 8 to 16V DC (Meter)
