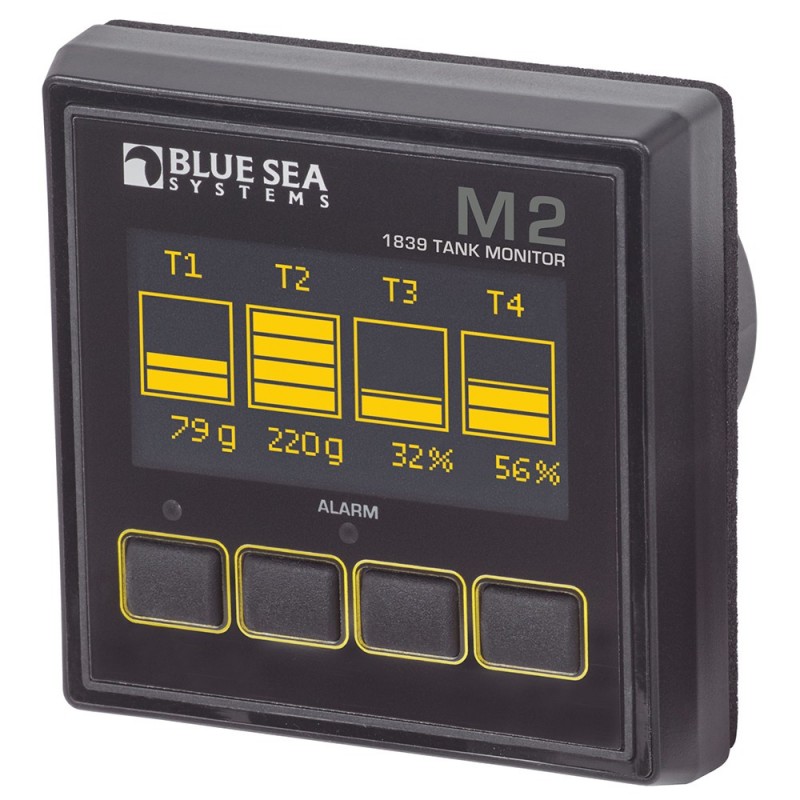

Blue Sea 1839 M2 OLED Tank Monitor View larger

Blue Sea 1839 M2 OLED Tank Monitor

Blue Sea Systems

64341

64341

New product

Blue Sea 1839 M2 OLED Tank Monitor

More details

$337.47

1 Item

In Stock

More info

M2 OLED Tank Monitor

The M2 Organic LED Digital Monitor measures essential electrical system parameters with adjustable alarms and an auto-dimming display. The M2 Monitors include a MOSFET External Circuit Relay (ECR) which can be used to control external circuits based on any value measured by the M2.

Features:
  • Auto-dimming, bright Organic LED display is easy to read
  • 80dB alarm on all models
  • Isolated 500mA MOSFET relay
  • Includes external DC Shunt or AC Current Transformer when required
  • Intuitive tank level monitoring
  • Monitor up to 4 tanks
  • Auto calibration for unique tank shapes
  • Compatible with common sending units


Specifications:
  • Meter: Tank
  • Function: Monitors tank volume in up to 4 tanks
  • Resolution: 1%
  • Display Size: 55mm x 28mm
  • Input Voltage: 7-70V DC - Variable with voltage, display intensity, and sleep mode
  • Range: 0.3W-1.0W
  • Tank Alarms: 80dB
  • Tank Shapes: Custom shapes, auto calibration
  • Weight: 0.25lb (0.11 kg)
