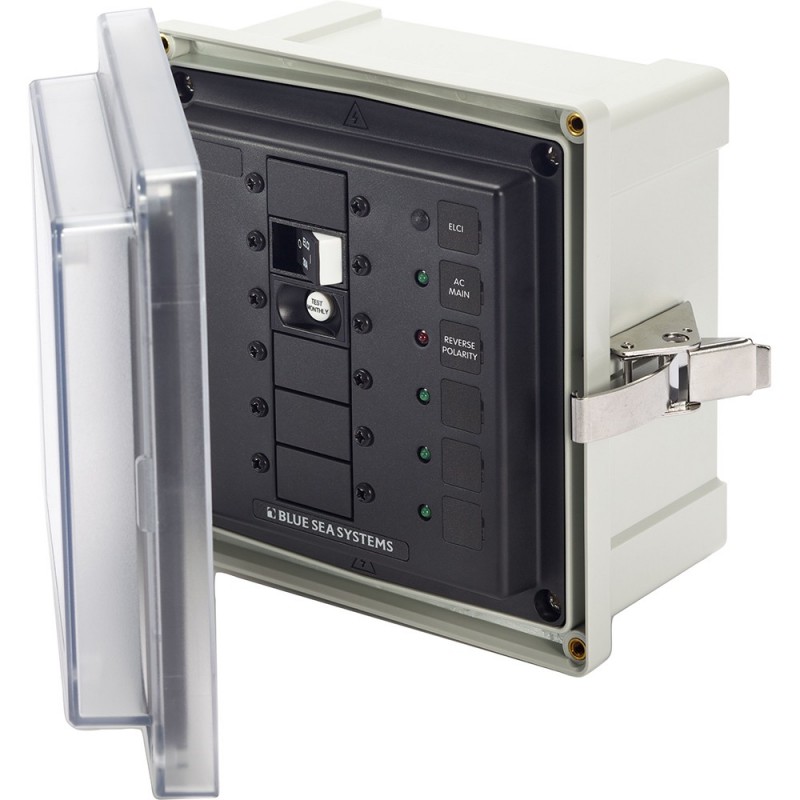

Blue Sea 3116 - SMS Panel Enclosure w/ELCI (30A) and 3 Blanks - 120V

3116 - SMS Panel Enclosure with ELCI (30A) and 3 Blanks - 120V

The 3116 panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.

Features:

• Blank apertures for custom breaker loading
• Glass filled polycarbonate base
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
• Includes waterproof glands
• LED lights for back lighting and ON indication

Technical Specifications:

• Circuit Breaker Type - 1 x ELCI (30A) Main 120V and 3 x Blank
• Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
• Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
• LEDs Installed - 1 x Red (Reverse Polarity - 120V AC and 4 x Green ON (120V AC)

In the Box:

• 3116 Enclosure
• Glands x 5
• Labels
• Mounting hardware
• Instruction manual

*Sold as an Individual
