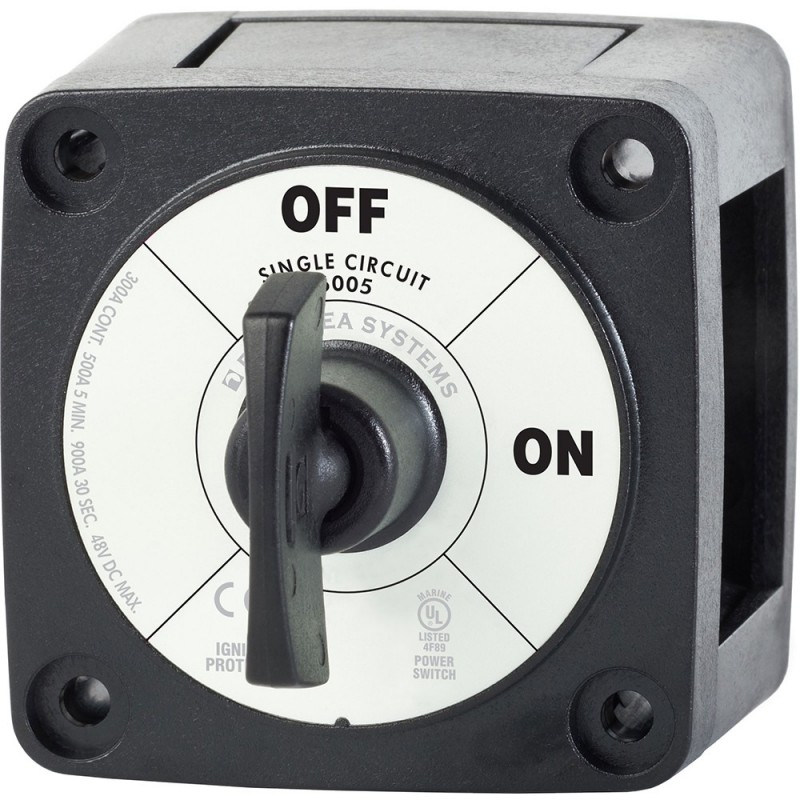

Blue Sea 6005200 Battery Switch Single Circuit ON-OFF - Black

m-Series Mini On-Off Battery Switch with Key - Black

Switches a single battery to a single load group Ignition protected-safe for installation aboard gasoline powered boats.

Case design allows surface, front panel, or rear panel mounting Isolating cover with snap-on sections protects rear contacts.

Switch Type: Single Circuit ON-OFF
Color: Black
Switch Positions: 2
Battery Combine: No
Alternator Field Disconnect: No
Maximum Voltage: 48V DC
Continuous Rating : 300A
Intermittent Rating : 500A (5 min)
Cranking Rating 10 sec: 1500A
Cranking Rating 1 min: 775A
Battery Inputs: 1
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm
