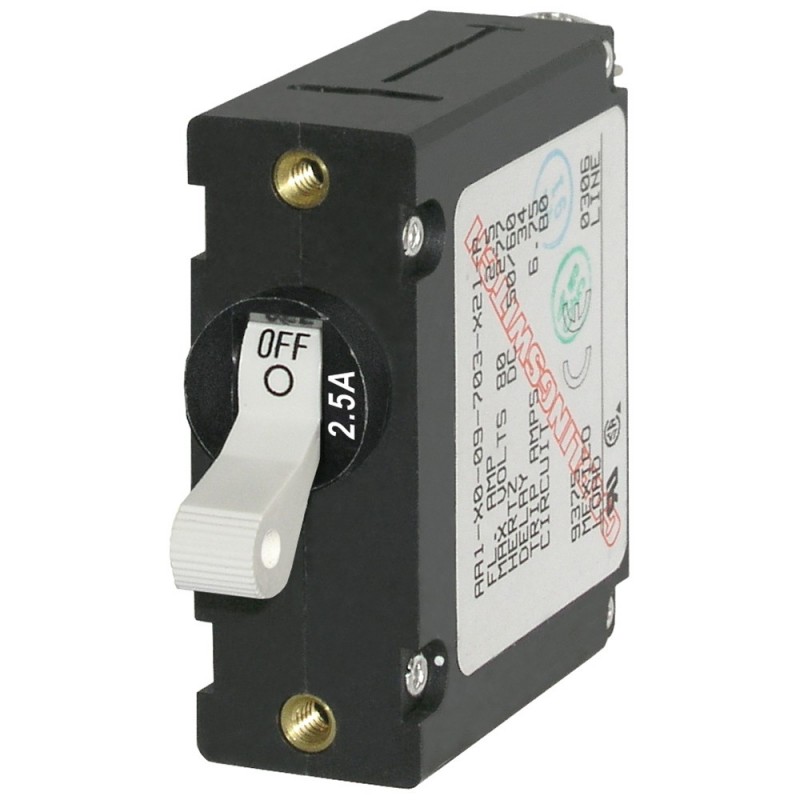

> >Blue Sea 7197 A-Series White Toggle Circuit Breaker - Single Pole 2.5A
Blue Sea 7197 A-Series White Toggle Circuit Breaker - Single Pole 2.5A View larger

Blue Sea 7197 A-Series White Toggle Circuit Breaker - Single Pole 2.5A

Blue Sea Systems

64359

64359

New product

Blue Sea 7197 A-Series White Toggle Circuit Breaker - Single Pole 2.5A

More details

$16.21

8 Items

In Stock

More info

A-Series White Toggle Circuit Breaker - Single Pole 2.5A

  • Meets American Boat and Yacht Council (ABYC) standards
  • The industry standard circuit breaker for Blue Sea Systems" electrical panels
  • Combines swtiching and circuit protection into a single device
  • "Trip Free" design cannot be held "ON" during fault current condition


Specifications:
  • Amperage: 2.5A AC / 2.5A DC
  • Color: White
  • Actuator Style: Toggle
  • Poles: 1
  • Maximum Voltage: 250V AC / 65V DC
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Interrupt Capacity: 3000A @ 120V AC / 1500A @ 250V AC [TUV] / 3000A @ 250V AC [UL 1077] / 7500A @ 65V DC
  • Minimum Operating Temperature: -40
