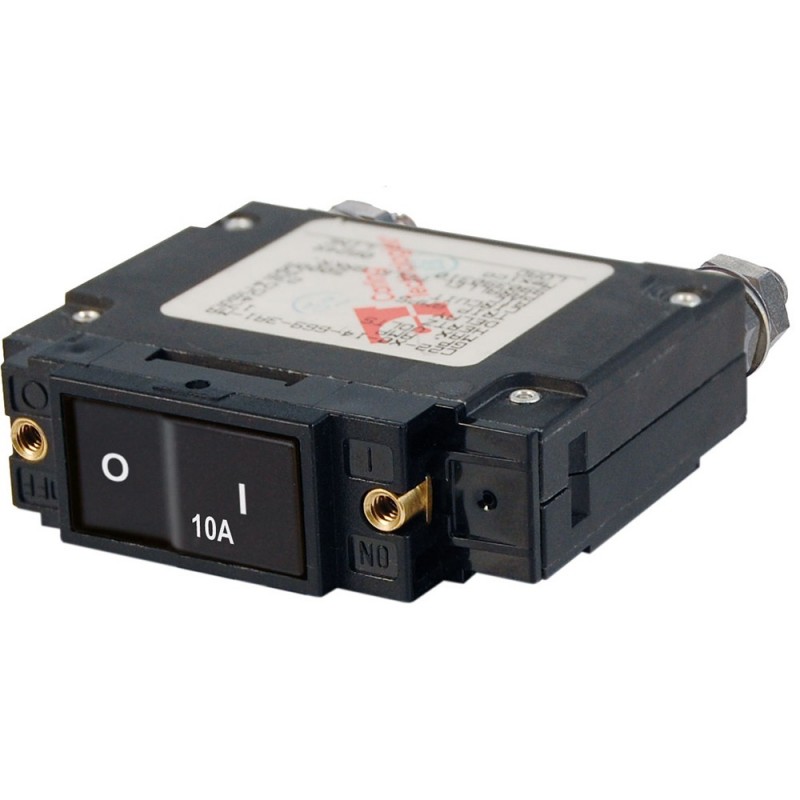

> >Blue Sea 7541 C-Series Flat Rocker Circuit Breaker - Single Pole - 10A
Blue Sea 7541 C-Series Flat Rocker Circuit Breaker - Single Pole - 10A View larger

Blue Sea 7541 C-Series Flat Rocker Circuit Breaker - Single Pole - 10A

Blue Sea Systems

65281

65281

New product

Blue Sea 7541 C-Series Flat Rocker Circuit Breaker - Single Pole - 10A

More details

$34.47

10 Items

In Stock

More info

C-Series Flat Rocker Circuit Breaker - Single Pole - 10A

Features:
  • Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching
  • Color actuator indicates "OFF" position
  • Provides overcurrent protection for inverters, bow thrusters, and windlasses
  • Combines switching and circuit protection into a single device
  • "Trip Free" - cannot be held closed after trip
  • Ignition protectedsafe for installation aboard gasoline powered boats


Specifications:
  • Amperage: 10A AC / 10A DC
  • Actuator Style: Flat Rocker
  • Poles: 1
  • Maximum Voltage: 240V AC / 48V DC
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Terminal Stud Torque: 35 in-lb (3.95 Nm)
  • Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC
  • Minimum Operating Temperature: -40
