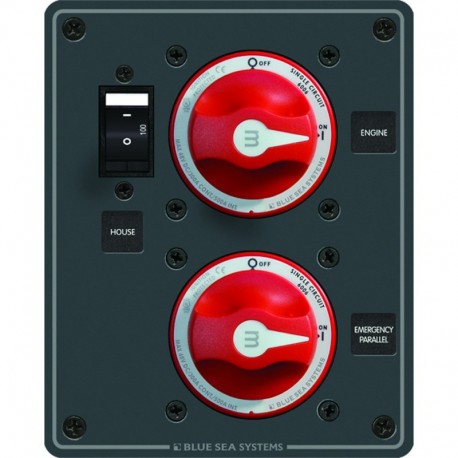

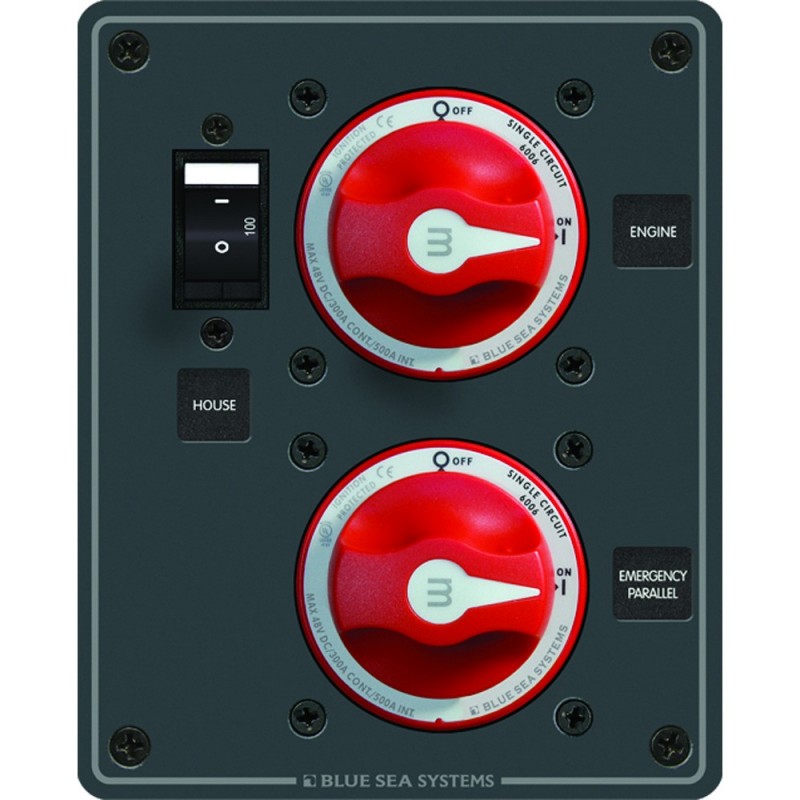

Blue Sea 8080 Single Circuit ON/OFF - Plus Main

8080 Single Circuit ON/OFF - Plus Main

Installed Components:

• 2 6006 m-Series Switches
• 1 100A c-Series Flat Rocker Circuit Breaker

Features:

• Isolates batteries and provides DC main circuit protection
• Ignition protected - Safe for installation aboard gasoline powered boats
• Isolates the Engine circuit from the House circuit
• Simplifies battery switch operation
• Protects electronics from sags and spikes caused by engine cranking
• Discharges batteries independently
• Addition of an Automatic Charging Relay automates charging of both batteries
• Enables a failed Start battery to be isolated from the electrical system and both House and Start loads to be operated from the remaining battery bank
• Provides main circuit protection for DC House power system
• Enables a failed House or Start battery bank to be isolated from the electrical system and both House and Start loads to be operated from the remaining battery bank
• Simplifies battery switch operation
• Isolates Start circuit from House circuit
• Protects electronics from sags and spikes caused by engine cranking
• Ignition protected - Safe for installation aboard gasoline-powered boats
• Addition of an Automatic Charging Relay automates charging both batteries
• Allows independent battery discharge
