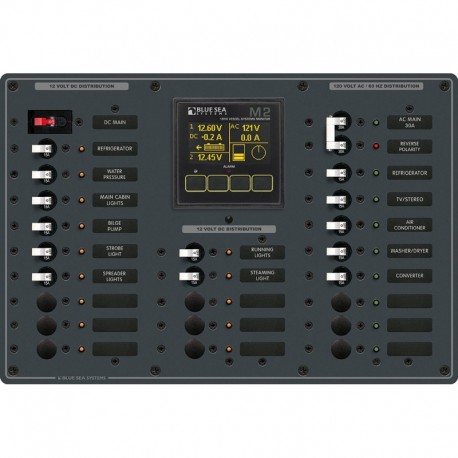

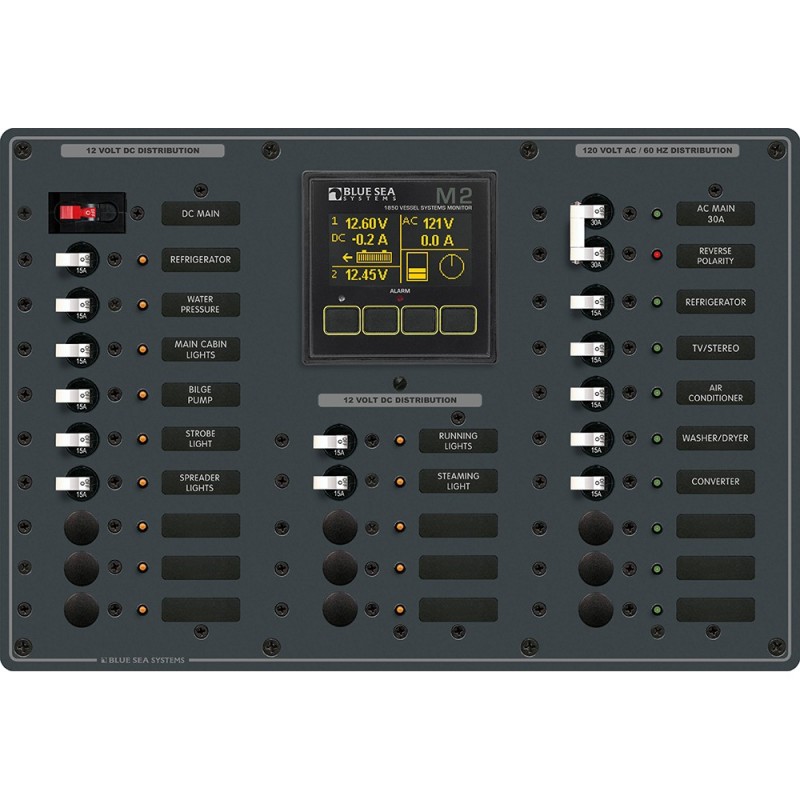

Blue Sea 8413 - Metal AC/DC Panel w/M2 Vessel Systems Monitor & 22 Circuit Breakers (15A)

8413 - Metal AC/DC Panel with M2 Vessel Systems Monitor & 22 Circuit Breakers (15A)

Complete AC/DC panel with M2 Vessel Systems Monitor (VSM) that provides monitoring of AC systems, DC systems, tanks, and bilges in one (1) compact OLED meter with NMEA 2000 connectivity.

Features:

• ON indicating LEDs installed in all circuit positions
• Backlit label positions
• Circuit identification label sets included
• White toggle circuit breakers match existing traditional panels
• AC and DC buses installed, fully pre-wired, and ready for installation
• The panel is marked to comply with ABYC standards
• Red reverse polarity indicated LED

Technical Specifications:

• Nominal Voltage - 120V AC and 12/24V DC
• Positions - 8 AC Positions + Main and 14 DC Positions + Main
• Meter - M2 Vessel Systems Monitor
• Dimensions (H x W x D) - 9.25" x 15.77" x 3" (235 x 400.56 x 76.2mm)

In the Box:

• 8413 Panel
• Labels
• Mounting hardware

*Sold as Individual
