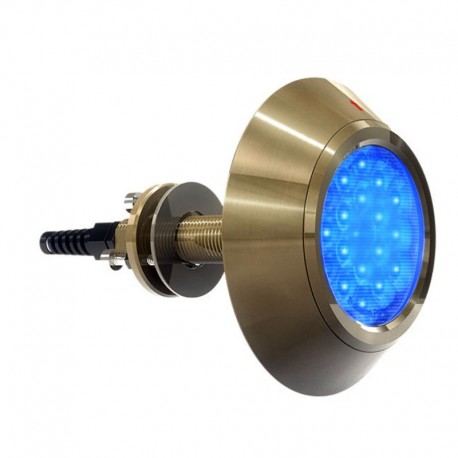

OceanLED 3010TH Pro Series HD Gen2 LED Underwater Lighting - Midnight Blue

Pro Series TH HD Gen2

The original Thru-Hull with the world's smallest hole cut-out for a thru
hull light at only 1" is now brighter again - the 3010TH HD Gen2 model is
43% brighter than its predecessor by exploiting the next generation of High
Definition LEDs from Cree.

With 10,000-fixture lumen brightness and a 1-inch (25mm) profile head make
the 3010TH the ideal underwater light for transom mount applications.

Suitable for all hull types over 65' (20m) using 4 or more lights with
spacing of 3-6' (1-1.8m) - for metal hulls, choose the Delrin Isolation
Sleeve accessory. Deutsch plug-and-play quick connectors make this light a
quick fit. Maintenance is easy; just wipe away marine growth from its
scratch resistant Tritonium glass lens. Three super bright LED color
options.

For a light that's less bright choose 2010TH HD Gen2. For a light with a
lower profile head for hull mount applications, or that can be exchanged
without hauling, choose from our XFM models. For a light with color-change
capabilities choose from our Colours models.

• 12/24vDC (AC Upgrade Available)

• 40,000+ Hour Life

• TritoniumTM Marine Growth Protection

• Plug & Play

• Aluminium Bronze AB2

• Factory Sealed

• Reverse Polarity Protected

Mounting Recommendations:
Boat Size:up to 65' (20M)
Transom Spacing:3-6' (1.0-1.8M)
Transom Quantity: 4+
Hull Spacing:4-8' (1.2-2.4M)
Installation Depth (to top of fixture): 10-12" (250-300mm)

Technical
Light Output Equivalent To: 2x100W HID Metal Halides
DFixture Lumens (total light output from a finished fixture): 10,000
Current/Amp Draw (DC) (AC Upgrade Available): 12VDC 10A / 24VDC 5A
Current/Amp Draw (AC): 110VAC 50/60HZ 1.3A / 240VAC 50/60HZ 0.6A
