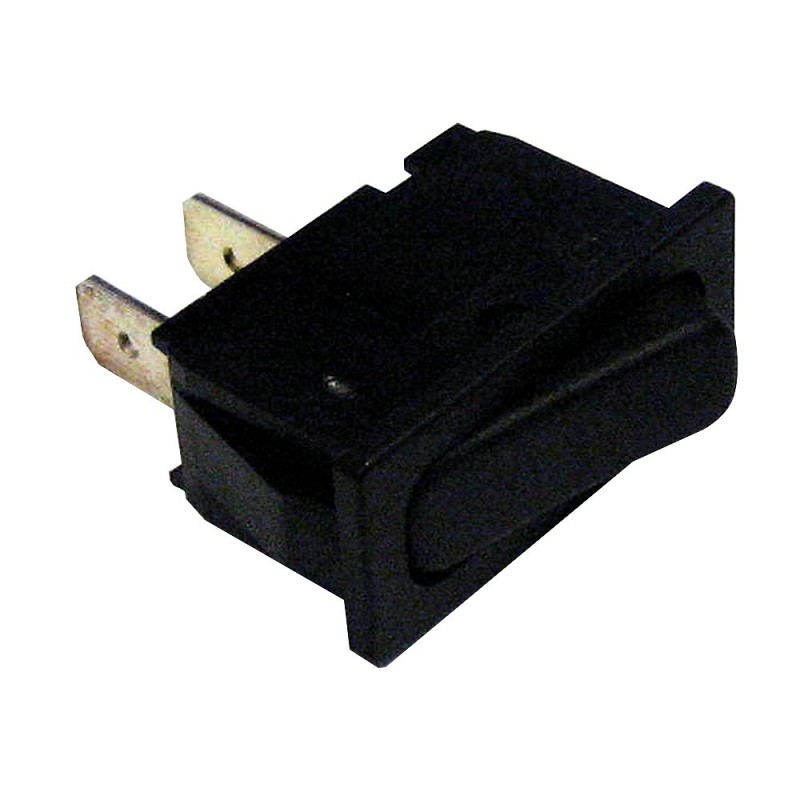

> >Paneltronics SPST ON/OFF Rocker Switch
Paneltronics SPST ON/OFF Rocker Switch View larger

Paneltronics SPST ON/OFF Rocker Switch

Paneltronics

29770

29770

New product

Paneltronics SPST ON/OFF Rocker Switch

More details

$4.96

Out of stock

More info

Rocker Switch

  • UL Recognized and CSA Certified
  • Single Pole Non-Illuminated
  • Snap-in Mounting
  • Replacement Switches for Paneltronics' Deluxe and Premier Panels


Specifications:

  • Maximum Contact Rating: 6 Amps @ 125VAC or 4 Amps @ 250VAC
  • Contacts: Silver Plated Copper
  • Terminals: Silver Plated Copper 1/4" (6.3mm) Quick Connects
  • Operating Temperature: -4 deg. F (-20 deg. C) to 131 deg. F (55 deg. C)
  • Housing and Actuator: Black Thermoplastic
  • Flammability Rating: UL 94 V-2
  • Rated IEC 60529: IP40
  • Panel Thickness: 1/8" (3.18 mm)
  • Recommended Panel Cut-Out: 1.188" (30.18 mm) x 0.468" (11.89mm)
