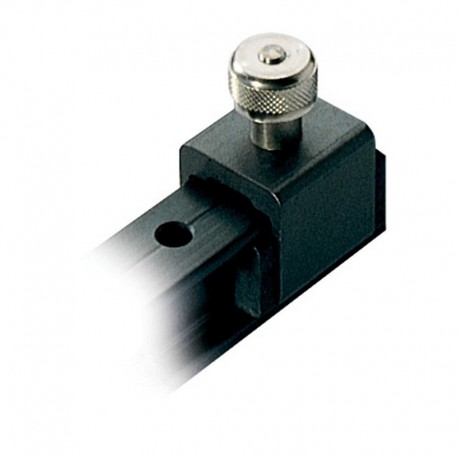

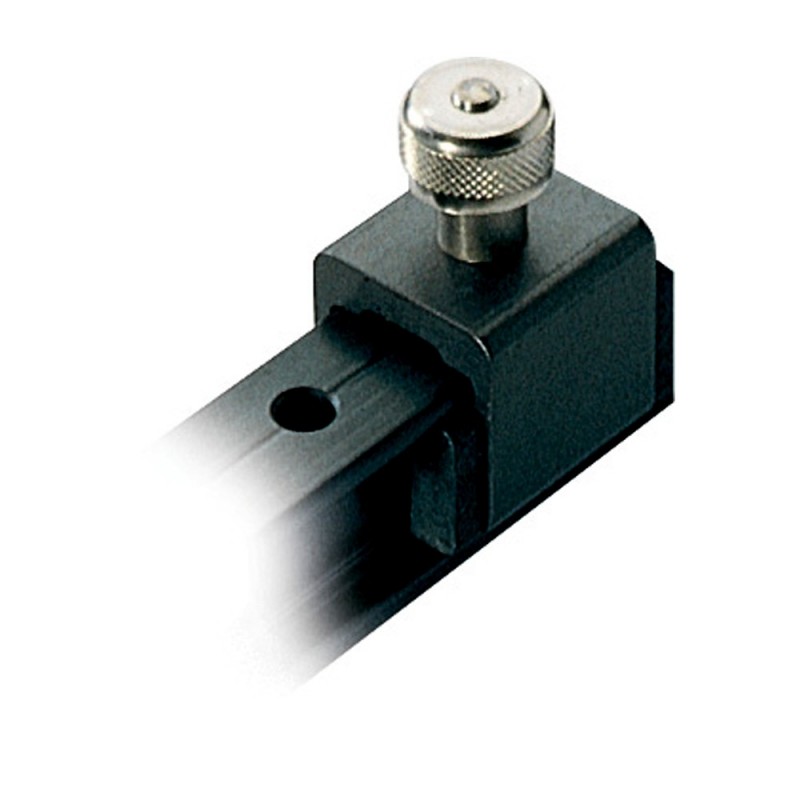

Ronstan Series 19 I-Beam Car - Adjustable Track Stop - Spring Loaded - 19mm (3/4")
55014
55014
New product
Ronstan Series 19 I-Beam Car - Adjustable Track Stop - Spring Loaded - 19mm (3/4")
More info
Series 19 I-Beam Car - Adjustable Track Stop - Spring Loaded - 25mm(1")
Track Fastenings: To suit 5mm(3/16") countersunk fasteners at 100mm(3-15/16") centres.
Stop Holes: - 50mm (1-31/32") centres.
Track is supplied with RC7250-INS insulating inserts to eliminate corrosion between track and fasteners
Minimum Curve Radius
Track Fastenings: To suit 5mm(3/16") countersunk fasteners at 100mm(3-15/16") centres.
Stop Holes: - 50mm (1-31/32") centres.
Track is supplied with RC7250-INS insulating inserts to eliminate corrosion between track and fasteners
Minimum Curve Radius
- For 51mm(2") car Min horizontal 'A' curve radius = 400mm (15-3/4"). Min horizontal 'B' curve radius = 400mm (15-3/4").
- For 86mm (3-3/8") car Min horizontal 'A' curve radius = 1200mm (47-1/4"). Min horizontal 'B' curve radius = not suitable.
- For 105mm (4-3/16") car Min horizontal 'A' curve radius = 400mm (15-3/4"). Min horizontal 'B' curve radius = not suitable.
Applications:- Mainsheet and self-tacking jib travellers on dinghies and catamarans
- Mainsheet systems on boats to 9M (28')
Materials:
Stainless body & plunger
- Mainsheet and self-tacking jib travellers on dinghies and catamarans
