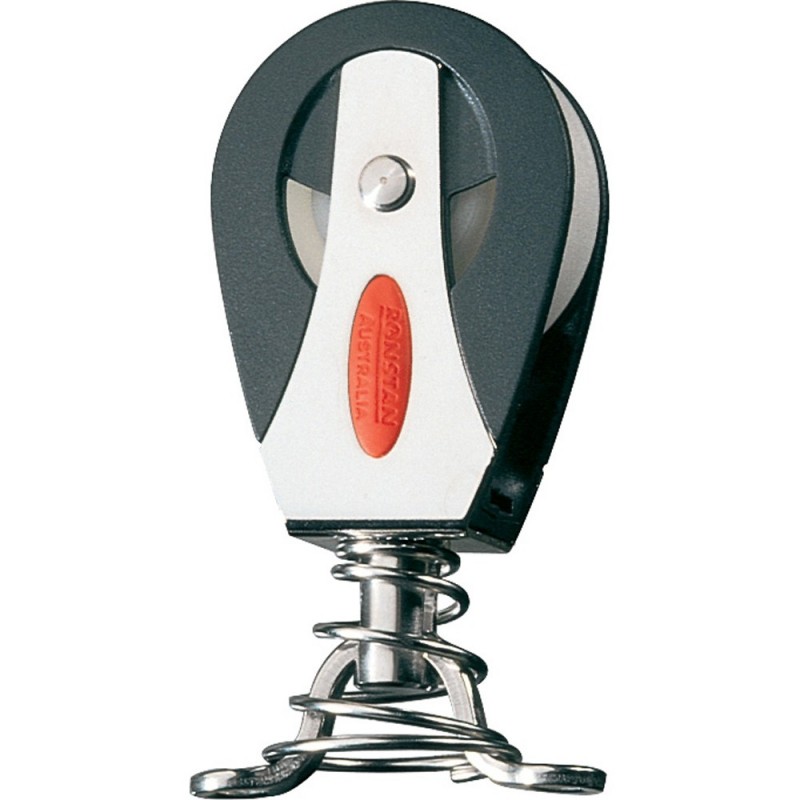

Ronstan Series 40 Ball Bearing Block - Single - Stand Up

Series 40 Ball Bearing Block - Single - Stand Up

Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Captive LockTM universal head can be fixed in either of two planes, or free to swivel as required.

Features:

• Low friction Acetal or Torlon® bearing system

• Lightweight

• Cheek cut-outs for easy bearing maintenance

• Captive LockTM universal head

• High static and dynamic load capacity

Applications:

• Mainsheet

• Halyard

• Vang

• Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8M(26')

Materials:

• U.V. Stabilized Acetal sheaves

• Acetal ball bearings

• Impact and U.V. resistant, fiber reinforced Nylon cheeks

• Grade 316 stainless steel load strap and head fitting

Specifications:
Sheave Ø: 40mm(1-9/16")
Max. Rope Ø: 10mm(7/16")
M.W.L.: 350kg(770lbs)
B. L.: 800kg(1,7600lbs)
Weight: 71g(2.5oz)
