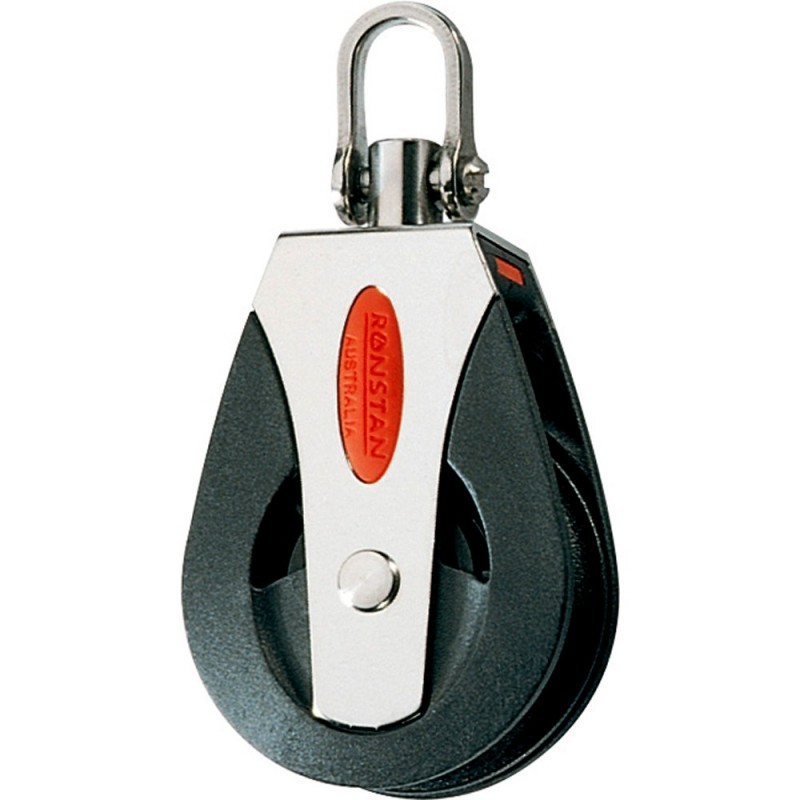

Ronstan Series 50 High Load Block - Single - Universal Head

Series 50 High Load Block - Single - Universal Head

Ideal for high load applications. Wear resistant sheave material, in lightweight, self lubricating polymer, is suitable for use with rope or wire.Captive LockTM universal head can be fixed in either of two planes, or free to swivel as required.

Features:

• Exceptionally high working loads

• Lightweight

• Cheek cut-outs for easy bearing maintenance

• Suitable for both rope or wire

• Captive LockTM universal head

• Slotted pin shackle eliminates fouled lines

Applications:

• Mainsheet

• Spinnaker sheets

• Halyards and other primary applications on boats up to 10M(33')

Materials:

• Nylatron® sheave

• Grade 316 stainless steel load strap and head fitting

• Impact and U.V. resistant, fiber reinforced Nylon cheeks

Specifications:
Sheave Ø: 50mm(2")
Max. Rope Ø: 12mm(1/2")
Max. Cable Ø:5mm(3/16")
Max. Pin Ø: 5mm(3/16")
M.W.L.: 800kg(1,760lbs)
B. L.: 1,500kg(3,310lbs)
Weight: 117g(4.1oz)
